Author: Jason Beattie
Objective
This post details the end-to-end process of expanding an existing Oracle Exadata environment by integrating two additional X10 storage cells. The steps include validating system compatibility, creating grid disks, integrating with Oracle ASM, and verifying post-implementation health and capacity.
System Overview
Environment Setup (Before Expansion):
Existing Storage Cells: Cell01, Cell02, Cell03
Database Nodes: DB01, DB02
ASM Disk Groups: DATA, DONOTUSE, RECOVER
Redundancy Mode: High
Storage Cells Added:
New Cell A
New Cell B
Note: All hostnames and IPs referenced in this blog are anonymized for confidentiality.
1. Initial Validation
Network Reachability: Ensured new storage cells were reachable from both DB nodes via public and private interfaces.
Image Consistency: Confirmed all storage servers were running matching image versions.
CLI Tools: Verified that CellCLI was operational on both new storage cells.
2. Grid Disk Provisioning

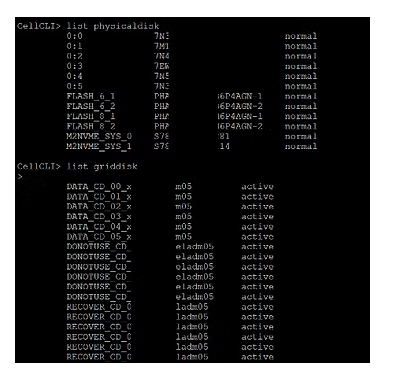

On each of the new cells, grid disks were manually created using CellCLi. Each physical disk was divided among the ASM disk groups according to defined sizing policies.
Sample Commands (Executed via CellCLI):
create griddisk DATA_CD_00_<cellname> celldisk=CD_00_<cellname>, size=8.111328125T create griddisk
DONOTUSE_CD_00_<cellname> celldisk=CD_00_<cellname>, size=2.77734375T create griddisk
RECOVER_CD_00_<cellname> celldisk=CD_00_<cellname>, size=1.4443359375T
This pattern was repeated across six celldisks per cell for both new storage servers.
3. ASM Integration
With grid disks created, the next step was to integrate them into ASM. First, we validated new disks using:
asmcmd lsdsk --candidate
Then, disks were added to each disk group:
DATA
ALTER DISKGROUP DATA ADD DISK 'o/<private_ip_set>/DATA_CD_00_<cellA>', ... 'o/<private_ip_set>/DATA_CD_05_<cellB>';
RECOVER
ALTER DISKGROUP RECOVER ADD DISK 'o/<private_ip_set>/RECOVER_CD_00_<cellA>', ... 'o/<private_ip_set>/RECOVER_CD_05_<cellB>';
DO NOT USE
ALTER DISKGROUP DONOTUSE ADD DISK 'o/<private_ip_set>/DONOTUSE_CD_00_<cellA>', ... 'o/<private_ip_set>/DONOTUSE_CD_05_<cellB>';
Each operation triggered an automatic rebalance operation handled internally by ASM.
4. Post-Integration Checks
Once disks were added, we ran several validations:
ASM Usage Verification
SELECT NAME, TOTAL_MB/1024 AS TOTAL_GB, FREE_MB/1024 AS FREE_GB FROM V$ASM_DISKGROUP;
Verified all newly added disks were visible.
Confirmed that rebalance operations completed successfully.
Checked logs for errors (none found in ASM or alert logs).

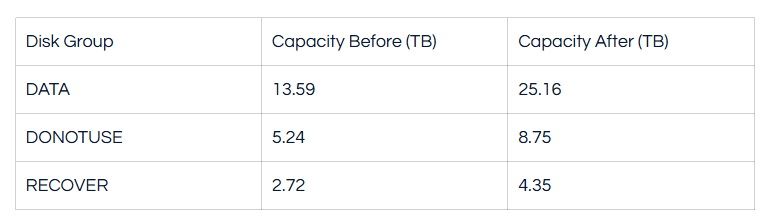

5. Capacity Results
Total usable capacity saw a significant increase across all critical disk groups.

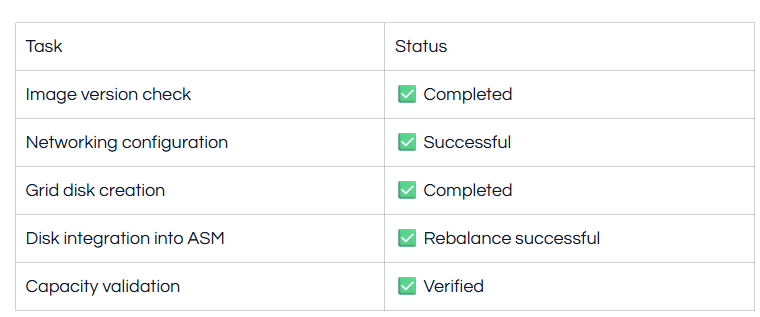

6. Summary
Conclusion
